Home EV Charging Stations: Your Complete Installation Guide

The Electric Vehicle Revolution Comes Home

Electric vehicles are rapidly becoming the norm in Ottawa and across Canada. With government incentives, lower operating costs, and expanding model options, more homeowners are making the switch to electric. But to maximize the convenience and cost savings of EV ownership, you need a proper home charging solution.

This comprehensive guide covers everything you need to know about installing an EV charger at your Ottawa home – from understanding charging levels to navigating rebates and choosing the right equipment.

Understanding EV Charging Levels

Level 1 Charging (120V)

Uses a standard household outlet. Provides 2-5 km of range per hour of charging.

Best for: Plug-in hybrids, occasional drivers, or overnight charging if you drive less than 60 km daily

Drawbacks: Very slow – a fully depleted battery could take 24-40 hours to charge

Level 2 Charging (240V) – Recommended

Uses a 240V outlet (like your electric dryer). Provides 20-100 km of range per hour, depending on the charger's power output and your vehicle.

Best for: Daily drivers, all-electric vehicles, anyone wanting convenient overnight charging

Benefits: Fully charge most EVs in 4-8 hours. This is the sweet spot for home charging.

Level 3 DC Fast Charging

Commercial charging stations (like Tesla Superchargers). Not typically installed in homes due to cost ($20,000-$50,000+) and electrical requirements (usually 400V three-phase power).

Choosing Your Home EV Charger

Key Specifications to Consider

1. Power Output (kW)

• 3.3-3.8 kW (16A): Budget option, slower charging
• 7.2-7.7 kW (32A): Most common, good balance of speed and cost
• 9.6-11.5 kW (40-48A): Fast charging if your vehicle and electrical panel support it

Note: Your charging speed is limited by your vehicle's onboard charger. For example, a Nissan Leaf with a 6.6 kW charger won't charge faster even with an 11 kW station.

2. Cable Length

Standard is 18-25 feet. Consider your parking setup and where you'll mount the charger. Longer cables offer flexibility but cost more.

3. Smart Features

• WiFi connectivity: Monitor charging via smartphone app
• Scheduling: Charge during off-peak hours for lower electricity rates
• Energy monitoring: Track charging costs and usage
• Load balancing: Prevents overloading your electrical panel

4. Indoor vs Outdoor

Most chargers are rated for outdoor use (look for NEMA 3R or 4 rating). If installing in a garage, ensure adequate ventilation.

Popular EV Charger Brands

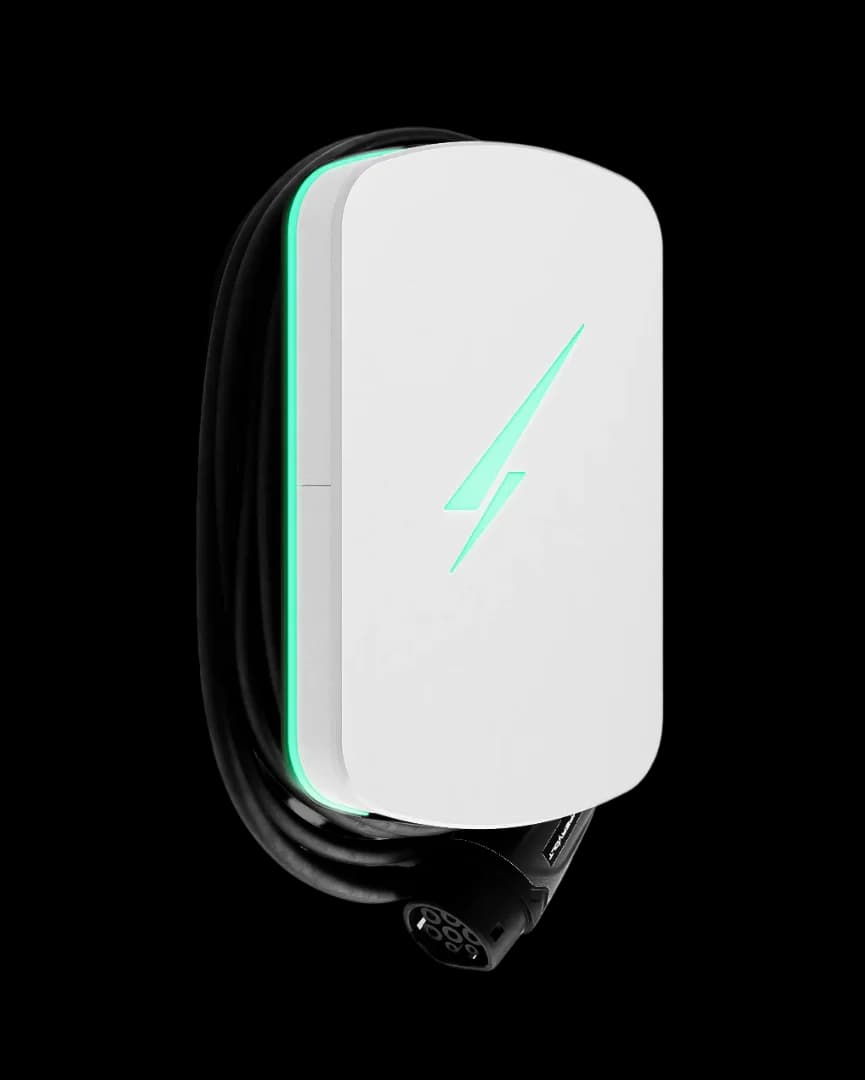

• Tesla Universal Wall Connector: Works with all EVs, sleek design, 48A output ($600-$700)
• ChargePoint Home Flex: Highly rated, adjustable amperage, excellent app ($699-$899)
• Grizzl-E Smart: Canadian-made, rugged, great for cold climates ($499-$649)
• Emporia Level 2: Budget-friendly, smart features, good app ($399-$549)
• JuiceBox 40: Popular choice, WiFi enabled, voice control ($599-$749)

Electrical Requirements and Panel Upgrades

Do You Need a Panel Upgrade?

Most modern homes (built after 1990) have 200-amp electrical panels, which can typically handle an EV charger. Older homes with 100-amp or 60-amp panels may need an upgrade.

A licensed electrician will assess:

• Your current panel capacity
• Existing electrical load in your home
• Available breaker spaces
• Distance from panel to charging location

Installation Requirements

• Dedicated circuit: Required by electrical code
• Proper gauge wiring: 6 AWG for 40A circuits, 8 AWG for 32A
• GFCI protection: Usually built into the charger
• Proper mounting height: 4-5 feet from ground typical
• Weatherproof installation: For outdoor locations

Installation Costs in Ottawa

EV Charger Unit: $400-$900 (most popular models)

Basic Installation: $600-$1,200 (charger near panel, no major upgrades)

Complex Installation: $1,200-$2,500 (long wire runs, panel upgrades, trenching)

Panel Upgrade (if needed): $2,000-$4,000 (100A to 200A upgrade)

Total typical cost: $1,000-$2,200 for most installations (after rebates)

Available Rebates and Incentives

Federal Incentives

• Zero-Emission Vehicle Infrastructure Program (ZEVIP): Residential charging incentives up to $5,000 per port (availability varies)

Ontario Incentives

• Check with your utility (Hydro Ottawa, Hydro One) for current residential EV charger rebates
• Some municipalities offer additional incentives

Utility Time-of-Use Rates

Charge overnight during off-peak hours (7 PM - 7 AM weekdays, all weekend) and pay significantly less. With a smart charger, you can automatically schedule charging for the cheapest times.

Example savings: Charging a Tesla Model 3 Long Range (75 kWh battery) costs about $7.50 during off-peak vs. $15+ during on-peak hours.

Installation Process Timeline

1. Initial consultation (30-60 minutes): Site assessment and electrical evaluation
2. Quote and rebate application (1-2 days): Detailed quote and help with rebate paperwork
3. Permitting (1-2 weeks): ESA permit application (required in Ontario)
4. Installation day (4-8 hours): Electrical work and charger mounting
5. Inspection (1-2 weeks): ESA inspection for permit closure

Total timeline: 2-4 weeks from consultation to completed installation

Common Installation Scenarios

Scenario 1: Attached Garage

Best option: Wall-mounted Level 2 charger near your electrical panel

Typical cost: $1,000-$1,500 installed

Scenario 2: Detached Garage

Consideration: May need trenching and underground conduit

Typical cost: $2,000-$3,500 installed (depending on distance)

Scenario 3: Outdoor Driveway

Best option: Outdoor-rated pedestal charger or wall mount on exterior wall

Typical cost: $1,500-$2,500 installed

Scenario 4: Condo/Townhouse

Requirement: Condo board approval required

Solution: Individual metered charger or shared charging infrastructure

Maintenance and Care

EV chargers are remarkably low-maintenance, but follow these tips:

• Inspect cable regularly for damage or wear
• Keep charger clean and free of debris
• Ensure proper cable storage (don't let it sit in water/snow)
• Test GFCI protection annually
• Update firmware as recommended by manufacturer
• Have an electrician inspect connections every 2-3 years

Why Choose Professional Installation

While DIY installation might seem tempting, professional installation is essential for:

• Safety: Improper electrical work can cause fires or electrocution
• Code compliance: Ontario Electrical Code requirements must be met
• Insurance: DIY installations may void home insurance
• Warranty protection: Many charger warranties require licensed installation
• Rebate eligibility: Most rebates require proof of licensed installation
• Permits and inspections: Professional handling of ESA requirements

Future-Proofing Your Installation

Consider these upgrades even if not immediately needed:

• Install 60A circuit: Even if using a 40A charger, leaves room for future upgrades
• Add conduit for second charger: If you might get a second EV
• Choose smart charger: Enables load management and time-of-use optimization
• Consider solar integration: Pre-wire for future solar panels
